Specification

The TP-Link TL-MR100 is a 4G LTE router that provides wireless internet connectivity using cellular data.

Model: TP-Link TL-MR100

Type: 4G LTE Router

Max Wireless Speed: 300 Mbps (2.4 GHz)

Dimensions: 204 x 144 x 35 mm (L x W x H)

Weight: 213.7 grams

Network Features:

4G LTE Connectivity:

LTE Category: LTE Category 4

Download Speed: Up to 150 Mbps

Upload Speed: Up to 50 Mbps

Supported Bands:

FDD-LTE: Band 1, 3, 5, 7, 8, 20

TDD-LTE: Band 38, 40, 41

WAN Port: 1 x 10/100 Mbps RJ45

LAN Ports: 4 x 10/100 Mbps RJ45

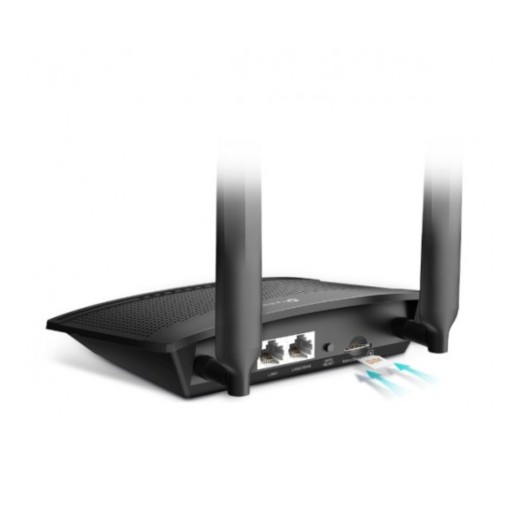

SIM Card Slot: 1 x Micro-SIM card slot for 4G connection

Wireless Features:

Wi-Fi Standards: IEEE 802.11b/g/n

Frequency: 2.4 GHz

Wireless Speed:

2.4 GHz: Up to 300 Mbps

Wireless Security:

WPA/WPA2 encryption

WEP, WPA-PSK, WPA2-PSK

Additional Features:

Router Mode: Yes

Access Point Mode: No (This model is focused on routing)

Compatibility: Works with most 4G LTE carriers

External Antennas: 2 x detachable external antennas

USB Port: No USB ports (for file sharing or printing)

Quality of Service (QoS): No specific advanced QoS settings

Parental Controls: Yes

Power:

Power Supply: 9V/0.6A

Power Consumption: Max 6W

System Requirements:

SIM Card: Requires an active 4G LTE SIM card for data connection

Browser: Web-based management interface, compatible with common browsers (IE, Firefox, Safari, Chrome)

Manufacturer warranty

Warranty: 1 Year

Description

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.

Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness

If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all. It provides separate Wi-Fi access for guests while securing the whole network.

Wi-Fi Where You Need It

Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

Reliable Access for Up to 32 Devices Simultaneously

Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 4 LAN ports stand ready to provide internet for wired devices like desktop computers.
