Specification

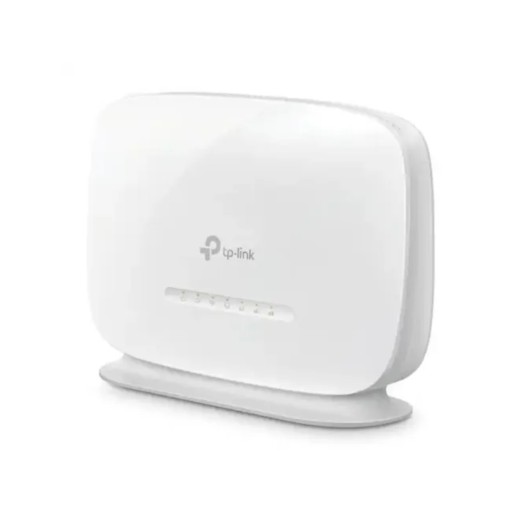

The TP-Link TL-MR105 is a 300 Mbps Wireless N 4G LTE Router designed to provide high-speed internet access by sharing a 4G LTE network with multiple devices.

Hardware Features:

Interfaces:

1× 10/100 Mbps LAN Port

1× 10/100 Mbps LAN/WAN Port

1× Nano SIM Card Slot

Buttons:

Reset/WPS Button

External Power Supply:

9V/0.85A

Dimensions (W × D × H):

174 × 130 × 60 mm (6.85 × 5.12 × 2.36 in)

Antennas:

2× Internal 4G/3G Antennas

2× Internal Wi-Fi Antennas

2× External 4G/3G Antenna Ports

Wireless Features:

Wireless Standards:

IEEE 802.11b/g/n

Frequency:

2.4 GHz

Signal Rate:

Up to 300 Mbps

Transmit Power:

< 20 dBm (2.4 GHz)

Wireless Security:

64/128-bit WEP

WPA/WPA2

WPA-PSK/WPA2-PSK encryptions

Network Type Compatibility:

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G:

DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features:

Security:

IPv4 SPI Firewall

IP and MAC Address Binding

Operating Modes:

3G/4G Router

Wireless Router

WAN Type:

Dynamic IP

Static IP

PPPoE

PPTP (Dual Access)

L2TP (Dual Access)

Management:

Local Management

Remote Management

DHCP:

Server

Client List

Address Reservation

Port Forwarding:

ALG

Virtual Server

Port Triggering

UPnP

DMZ

Dynamic DNS:

TP-Link

DynDns

NO-IP

Protocols:

IPv4

IPv6

Guest Network:

2.4 GHz Guest Network

Other Information:

Certification:

CE

RoHS

Package Contents:

TL-MR105 300 Mbps Wireless N 4G LTE Router

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements:

Internet Explorer 11+

Firefox 12.0+

Chrome 20.0+

Safari 4.0+

Other JavaScript-enabled browsers

Nano SIM Card

Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Manufacturer warranty

Warranty: 1 year

Description

The TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router is a versatile and dependable option for maintaining consistent internet access in a variety of circumstances. Taking use of the cutting-edge capabilities of 4G networks, this router allows users to share internet access with up to 32 Wi-Fi devices at the same time, giving astounding download rates of up to 150Mbps. Whether you're at home, on the road, or in a temporary office, the TL-MR105 delivers a strong and steady internet connection to keep you connected and productive. The TL-MR105's plug-and-play capability makes it simple to set up—just insert a compatible SIM card, and the router will automatically configure itself for best performance. Years of thorough field testing have verified compatibility with SIM cards from over 100 countries, giving consumers peace of mind and seamless connectivity wherever they travel. The TL-MR105's Wi-Fi router mode provides unrivaled versatility, enabling users to instantly switch to an Ethernet connection by connecting an Ethernet cable to the LAN/WAN connector. This capability is useful in circumstances where a 4G connection is not accessible or when users need a wired connection for certain devices. The TL-MR105 prioritizes security and stability, with a built-in firewall and strong encryption methods to secure your network from unwanted access and possible threats. Its tiny and stylish form makes it suited for both home and workplace settings, while its easy web interface allows for easy network management and customization. Whether you're a home user looking for dependable internet access for streaming, gaming, and browsing, or a professional needing dependable connectivity for remote work or business operations, the TP-Link TL-MR105 300 Mbps Wireless N 4G LTE Router has the right combination of performance, versatility, and convenience to meet your needs.
