Specification

The TP-Link TD-W8961N is a 300Mbps ADSL2+ modem router, designed for high-speed internet and networking.

1. ADSL2+ Modem Features:

ADSL2+ Standard: Supports ADSL, ADSL2, and ADSL2+ standards for high-speed internet access.

Broadband Speed: Provides up to 24Mbps download and 1Mbps upload speed over ADSL2+.

2. Wireless Features:

Wi-Fi Speed: Supports 802.11n wireless standard with speeds up to 300Mbps.

Frequency Band: 2.4 GHz.

Wireless Security: Supports WPA/WPA2 encryption for secure wireless connections.

3. Ports and Connectivity:

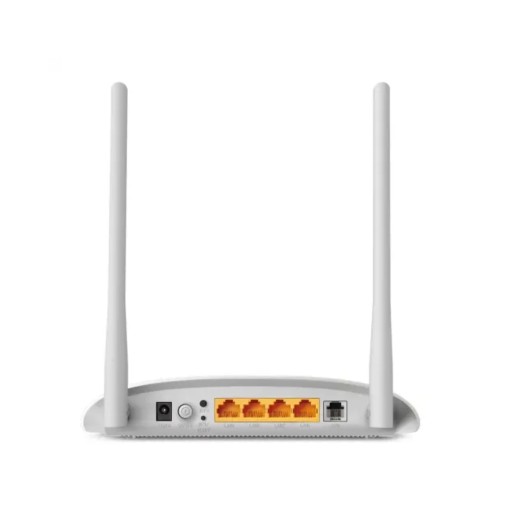

Ethernet Ports: 4 x 10/100 Mbps LAN ports for wired connections.

WAN Port: 1 x RJ11 port for connecting to your ADSL line.

USB Port: 1 x USB 2.0 port for sharing files or printers over the network.

4. Routing Features:

NAT (Network Address Translation): Allows sharing a single IP address for multiple devices.

DHCP Server: Assigns IP addresses automatically to devices on the network.

IPV6 Support: Supports IPv6 addressing for next-generation internet compatibility.

5. QoS (Quality of Service):

Provides traffic prioritization to ensure stable performance for activities such as gaming or VoIP.

6. VPN Support:

PPTP and L2TP VPN pass-through support.

7. Other Features:

WPS (Wi-Fi Protected Setup): Quick and secure wireless network setup.

SPI Firewall: Provides protection against external threats.

Parental Controls: Allows control over internet access for specific devices.

Firmware Updates: Supports firmware upgrades via the web interface.

8. Power Supply:

Power Input: 9V DC @ 0.6A.

9. Physical Dimensions:

Dimensions: 175 x 125 x 35 mm.

Weight: Approx. 0.35 kg.

Manufacturer warranty

Warranty: 1 Year

Description

The TP-Link TD-W8961N is an adaptable all-in-one device that includes an ADSL2+ modem, NAT router, 4-port switch, and wireless N access point, making it suitable for both home and small office use. It is ideal for bandwidth-intensive applications like online gaming, streaming HD videos, and internet calls because of its 300Mbps wifi speed. The TP-Link TD-W8961N 300Mbps Wireless N Modem Router facilitates a simple and rapid installation process with its multilingual setup help. A Wi-Fi On/Off button for intuitive operation and a one-touch WPS button for simple wireless encryption improve security. Physical specifications of the TP-Link TD-W8961N 300Mbps Wireless N Modem Router include one RJ11 connector, four 10/100Mbps RJ45 connections, and a small 7.7 x 5.1 x 1.4-inch design. It ensures interoperability with diverse service providers by supporting many ADSL standards, such as ITU-T G.992.5 and ANSI T1.413 Issue 2. The apparatus is furnished with stationary omnidirectional antennas, offering a 2x5dBi gain. The TP-Link TD-W8961N 300Mbps Wireless N Modem Router has strong security features like NAT and SPI firewalls, flexible management options like web-based configuration and remote management capabilities, and advanced features like Quality of Service (QoS) for traffic prioritization on the software front. Along with many filtering features to improve network security, the router supports many protocols, such as DHCP and VPN pass-through for PPTP, L2TP, and IPSec. For consumers looking for a single-device solution that offers effective internet access, the TP-Link TD-W8961N is engineered to provide dependable performance and extensive capabilities.
