Specification

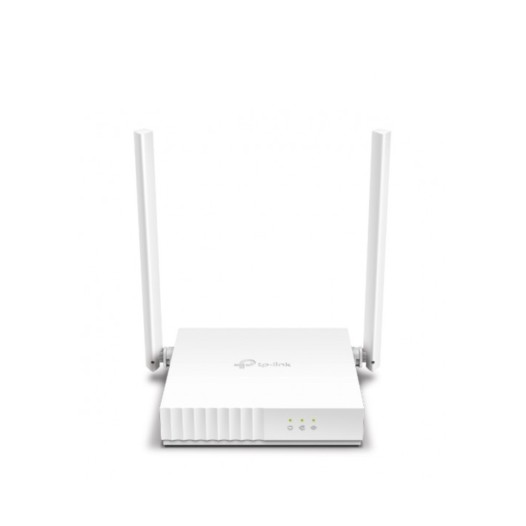

The TP-Link TL-WR820N is a 300 Mbps Multi-Mode Wi-Fi Router designed to meet daily internet needs such as browsing, emailing, and video streaming.

Wireless Features:

Standards: Wi-Fi 4 (IEEE 802.11n/b/g) operating on the 2.4 GHz band.

Speed: Offers up to 300 Mbps on the 2.4 GHz frequency.

Coverage: Equipped with two fixed 5 dBi antennas utilizing 2×2 MIMO technology to enhance wireless transmission and provide broader coverage with stronger signal intensity.

Operating Modes:

Router Mode: Creates a private wireless network and shares internet access with Wi-Fi devices.

Access Point Mode: Transforms an existing wired network into a wireless one.

Range Extender Mode: Boosts existing wireless coverage.

WISP Mode: Connects to an ISP network wirelessly in areas without wired service.

Security Features:

Network Security: Includes an SPI firewall, access control, IP & MAC binding, and an application layer gateway.

Guest Network: Provides a separate 2.4 GHz guest network to ensure the security of the main network.

Wi-Fi Encryption: Supports WEP, WPA, WPA2, and WPA/WPA2-Enterprise (802.1x) encryption standards.

Hardware Specifications:

Processor: Powered by a single-core CPU.

Ethernet Ports: Includes one 10/100 Mbps WAN port and two 10/100 Mbps LAN ports.

Buttons: Features a reset button.

Power Supply: Operates on a 5 V ⎓ 0.6 A power supply.

Software Features:

Protocols: Compatible with both IPv4 and IPv6.

Parental Controls: Offers URL filtering and time controls to manage internet access.

Quality of Service (QoS): Allows device prioritization to manage bandwidth effectively.

NAT Forwarding: Supports port forwarding, port triggering, DMZ, and UPnP.

IPTV Support: Optimizes IPTV streaming with IGMP Proxy, IGMP Snooping, Bridge, and Tag VLAN features.

DHCP: Provides address reservation, a DHCP client list, and server capabilities.

Management: Can be managed via the TP-Link Tether App or through a web interface.

Physical Specifications:

Dimensions: Measures 115 × 106.7 × 24.3 mm (4.5 × 4.2 × 1.0 in).

Package Contents: Includes the TL-WR820N router, power adapter, RJ45 Ethernet cable, and a quick installation guide.

Manufacturer warranty

Warranty: 01 Year

Description

TP-Link TL-WR820N 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work. IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming. Compatible with IPv6 (Internet Protocol version 6). Guest Network provides separate access for guests while securing the host network. Parental Controls manage when and how connected devices can access the internet. Security protocols protect your home network with firewalls and wireless encryption.
