Key Features

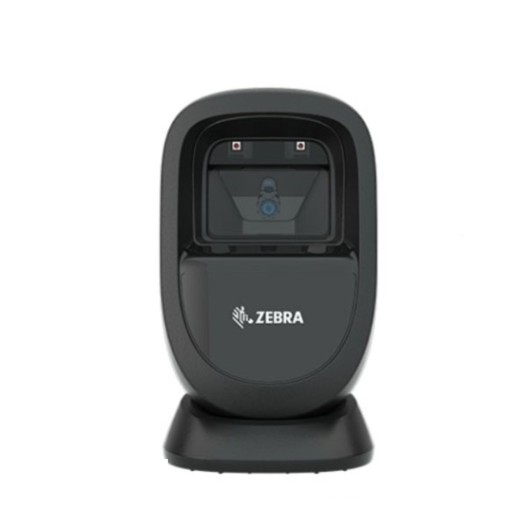

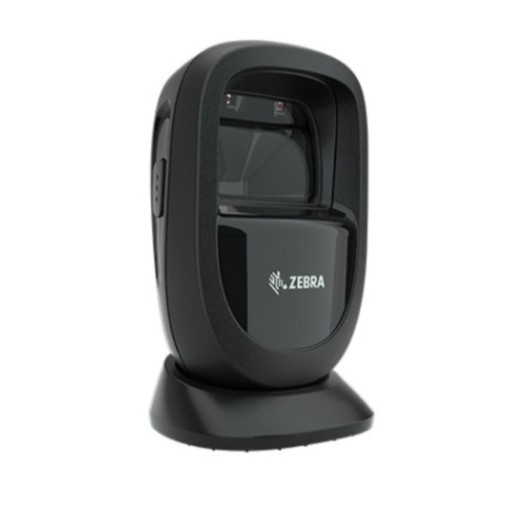

Model: DS9308
Replaces the DS9208 Scanner – Just Faster
Scans All 1D/2D/QR amd e-Script Codes
Scans Barcodes from Screens
Built To Handle Drops, Dusts & Spills
Specification
|
Dimensions |
5.7 in. H x 3.4 in. W x 3.3 in. D |
|
Weight |
11.2 oz. / 318.0 g |
|
Input Voltage Range |
4.5 to 5.5 VDC host powered;
4.5 to 5.5 VDC |
|
Operating Current at |
Presentation mode: 335mA Trigger
mode: 350mA |
|
Standby Current (Idle) at Nominal
Voltage (5.0V) |
Presentation mode: 135mA Trigger
mode: 75mA |
|
Color |
Alpine White, Midnight Black |
|
Supported Host |
USB, RS232, Keyboard Wedge, TGCS
(IBM) 46XX |
|
Keyboard Support |
Supports over 90 international
keyboards |
|
Electronic Article |
Compatible with Checkpoint EAS |
|
User Indicators |
Good decode LEDs, rear view LEDs,
beeper |
|
Swipe Speed |
Up to 120 in./305 cm. per second
for 13 mil UPC in optimized mode |
|
Light Source |
Aiming pattern: circular 617 nm
amber LED |
|
Illumination |
660 nm Hyper Red LED |
|
Imager Field of View |
52° H x 33° V nominal |
|
Image Sensor |
1280 x 800 pixels |
|
Minimum Print Contrast |
15% |
|
Skew Tolerance |
+/-60° |
|
Pitch Tolerance |
+/-60° |
|
Roll Tolerance |
360° |
|
Operating Temperature |
32.0° F to 122.0° F / 0.0° C to
50.0° C |
|
Storage Temperature |
-40.0° F to 158.0° F / -40.0° C to
70.0° C |
|
Humidity |
5% to 95% RH, non-condensing |
|
Drop Specification |
Designed to withstand multiple
drops at |
|
Tumble Specification |
Designed to withstand 1,000
tumbles in |
|
Environmental Sealing |
IP52 |
|
Electrostatic Discharge (ESD) |
ESD per EN61000-4-2, +/-15 KV Air,
+/-8 KV indirect |
|
Ambient Light Immunity |
0 to 10,000 foot-candles/0 to
107,700 Lux |
Warranty: 1 Year Without Cable
