Dimensions

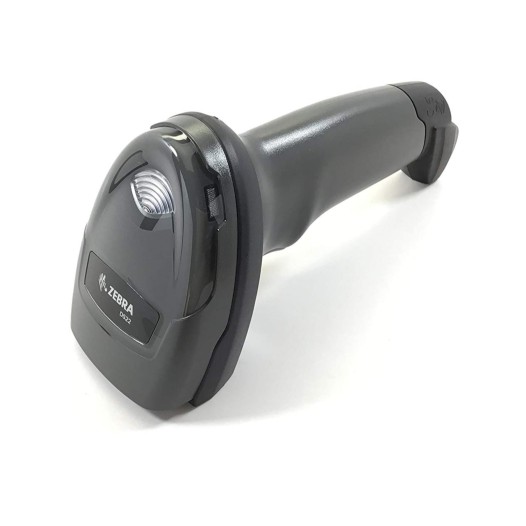

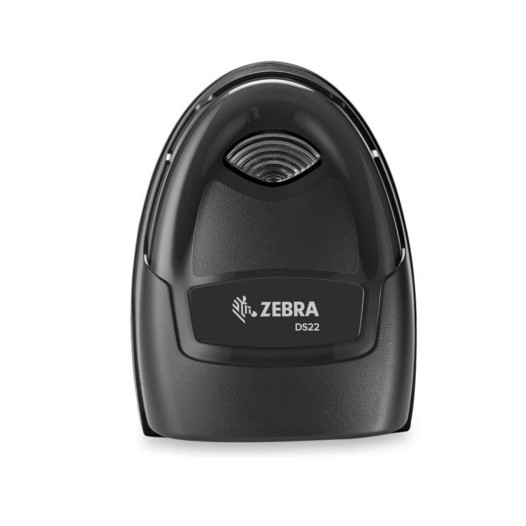

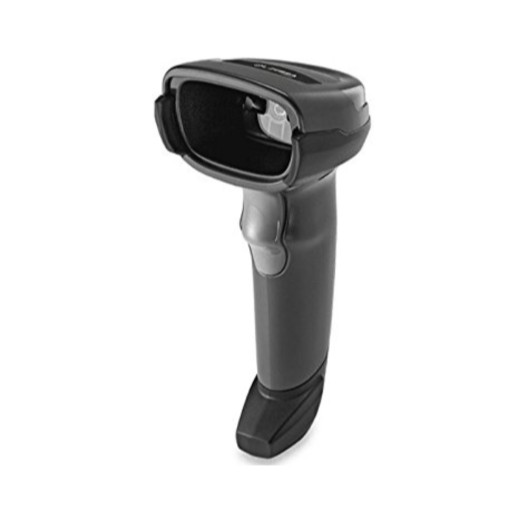

Corded DS2208

6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm. H x 6.6 cm. W x 9.9 cm. D

Cordless DS2278

6.9 in. H x 2.6 in. W x 3.9 in. D
17.5 cm. H x 6.6 cm. W x 9.9 cm. D

Presentation Cradle

2.8 in. H x 3.7 in. W x 4.8 in. D
7.1 cm. H x 9.4 cm. W x 12.2 cm. D

Weight

Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: TBD
Presentation Cradle: TBD

Input Voltage Range

DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host
Powered 4.5 to 5.5 VDC External Power Supply

Current

Corded DS2208 Operating Current at Nominal
Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and
Illumination on Acquiring Image)
Corded DS2208 Standby Current (idle) at Nominal
Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA
(typical) Standard USB 1100 mA (typical) BC 1.2 USB

Color

Nova White, Twilight Black

Supported Host Interfaces

USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over
RS485

Keyboard Support

Supports over 90 international keyboards

User Indicators

Direct Decode Indicator good decode LEDs Rear view
LEDs beeper (adjustable tone and volume)

PERFORMANCE CHARACTERISTICS

Motion Tolerance (Handheld)

Up to 5 in./13 cm. per second for 13 mil UPC

Swipe Speed (Hands-Free)

Up to 30.0 in./76.2 cm. per second for 13 mil UPC

Light Source

Aiming Pattern: Linear 624nm Amber LED

Illumination

645nm Super-Red LEDs

Imager Field of View

32.8° H x 24.8° V Nominal

Image Sensor

640 x 480 pixels

Minimum Contrast

25% minimum reflective difference

Skew/Pitch/Roll Tolerance

+/- 65° +/- 65° 0-360°

Minimum Element Resolution

Code 39 &ndash 4.0 mil Code 128 &ndash 4.0 mil
Data Matrix &ndash 6.0 mil QR Code &ndash 6.7 mil

USER ENVIRONMENT

Operating Temperature
Presentation Cradle

32.0° to 104.0° F/0.0° to 40.0° C

Storage Temperature

-40.0° to 158.0° F/-40.0° to 70.0° C

Humidity

5% to 95% RH, non-condensing

Specification

Designed to withstand multiple drops at
5.0 ft./1.5 m to concrete

Tumble Specification

Designed to withstand 250 tumbles
in 1.5 ft./.5 m tumbler1

Environmental Sealing

IP42

Electrostatic Discharge (ESD)

DS2208/DS2278 and Cradle: ESD per EN61000-4-2,
+/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Ambient Light Immunity

to 10,000 Foot Candles/0 to 107,600 Lux

RADIO SPECIFICATIONS

Bluetooth Radio

Standard Bluetooth Version 4.0 with BLE: Class 2
33 ft. (10.0m), Serial Port and HID Profiles output
power adjustable down from 2.0 dBm in 8 Steps

DECODE CAPABILITIES3

1D

Code 39, Code 128, Code 93, Codabar/NW7, Code 11,
MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1
Data Bar, Base 32 (Italian Pharma)

2D

PDF417, Composite Codes, TLC-39, Aztec, DataMatrix,
MaxiCode, QR Code, Micro QR, Chinese Sensible (Han
Xin), Postal Codes
