Key Features

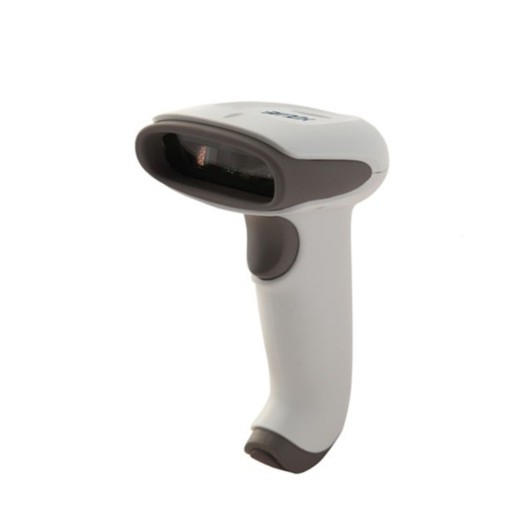

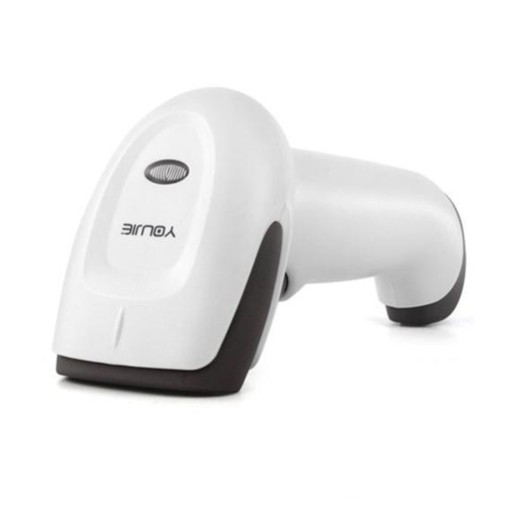

Model: YJ3300
Light Source: Visible Laser Diode 650 nm
± 10 nm
Scan Pattern: Single line
Scan Speed: 72 scan lines/second
Scan Angle: Horizontal: 46°
Pitch, Skew: 68°, 52°
Specification
|
Product Code |
YJ3300-1-USB |
|
Scan Performance |
|
|
Light Source |
Visible Laser Diode 650 nm ± 10 nm |
|
Visual Indicators |
Green=laser shines, ready to scan,
red= successful decoding |
|
System Interface |
Keyboard Wedge, Independent
Keyboard Wedge, USB |
|
Scan Pattern |
Single line |
|
Scan Speed |
72 scan lines/second |
|
Scan Angle |
Horizontal: 46° |
|
Print Contrast |
35% minimum reflection difference |
|
Pitch, Skew |
68°, 52° |
|
Decode Capabilities |
All standard 1D |
|
Mechanical |
|
|
Dimensions (LxWxH) |
110mm x70 mm x 153mm |
|
Weight |
120g |
|
Electrical |
|
|
Input Voltage |
5VDC ±0.25V |
|
Power-typical |
675mW (125mA@5V-standby) |
|
700 mW (140mA@5V-decoding) |
|
|
Laser Level |
Class 1, IEC60825-1 |
|
Electromagnetic Compatibility |
EN55022 Class B |
|
Operating Temperature |
|
|
Operating Temperature |
0°C – 40°C |
|
Storage Temperature |
-40°C – 60°C |
|
Humidity |
5% to 95% relative humidity,
non-condensing |
|
Light Levels |
4842 LUX (150m candlelight) |
|
Drop |
Designed to withstand 1m drops |
|
Environmental Sealing |
Sealed to resist airborne
particulate contaminants |
|
Typical Performance |
|
|
Narrow Width – Depth of Field |
UPC-A 13mil – 0.5” – 10” |
|
10.4mil – 1” -9” |
|
|
7.5mil – 2” – 8” |
|
|
5mil – 3” – 5” |
|
|
Resolution – 4mil |
|
