Key Features

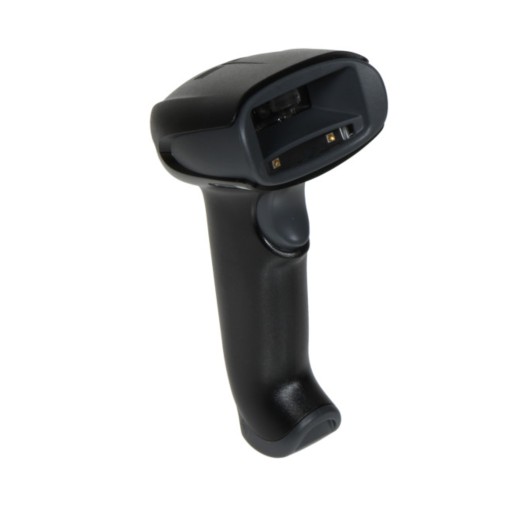

Model: MS 1900
Weight 147 g (5.2 o z)
Scan Angle HD Focus: Horizontal 41.4°;
Vertical: 32.2°
Dimensions (L x W x H) 104 mm x 71 mm x 160 mm
Specification
|
Dimensions (LxWxH) |
104 mm x 71 mm x 160 mm (4.1˝ x
2.8˝ x 6.3˝) |
|
Weight |
147 g (5.2 oz) |
|
Input Voltage |
4 VDC to 5.5 VDC |
|
Operating Power |
2.3 W (450mA @ 5 VDC) |
|
Standby Power |
0.45 W (90mA @ 5 VDC) |
|
Host System Interfaces |
USB, Keyboard Wedge, RS232, IBM
46xx (RS485) |
|
Operating Temperature |
0°C to 50°C (32°F to 122°F) |
|
Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Humidity |
0% to 95% relative humidity,
non-condensing |
|
Drop |
Designed to withstand 50 1.8 m
(6´) drops to concrete |
|

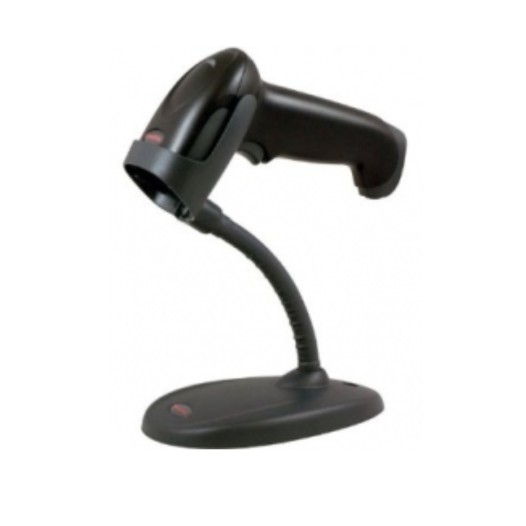

Ratchet stand |
Designed to withstand 50 1.2 m
(4´) drops to concrete on each of the faces |
|
Environmental Sealing |
IP41 |
|
Light Levels |
0 to 100,000 lux (9,290
foot-candles) |
|
Ratchet Cycles |
The ratchet stand shall support
10,000 cycles without losing its ability |
|
Scan Pattern |
Area Image (838 x 640-pixel array) |
|
Motion Tolerance |
Up to 610 cm/s (240 in/s) for 13
mil UPC at optimal focus |
|
Scan Angle |
HD Focus: Horizontal 41.4°;
Vertical: 32.2° |
Warranty: One Year Warranty Without Cable
