Key Features

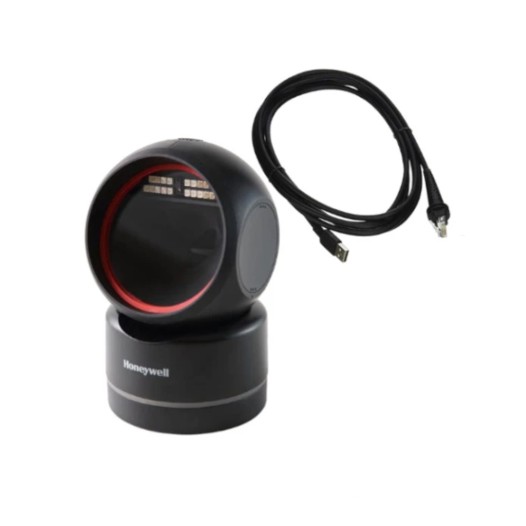

Orbit HF680 1D/2D Hands-Free Area-Imaging
Scanner
lightning fast scanning of both 1D and 2D
barcodes.
MODERN STYLING
USB/RS232
Specification
Boost your checkout speed and efficiency
with the Honeywell Orbit HF680, a hands-free/presentation barcode scanner that
delivers exceptional performance at an attractive price.
The Orbit HF680 perfectly combines
affordability, functionality, and style. It eliminates the need to compromise
on budget while getting a modern scanner that enhances your checkout area.
Here's what makes the Orbit HF680 stand
out:
Lightning-Fast Scanning: Experience rapid
scanning of both 1D and 2D barcodes, including digital and even slightly
damaged codes, keeping your lines moving.
Effortless Integration: Save setup time
with Honeywell's EZConfig configuration utility and OPOS/JPOS drivers that
ensure compatibility with various point-of-sale systems.
Unobtrusive Design: The low-profile scan
window with recessed LED lights illuminates barcodes without causing discomfort
to customers. The scanner also automatically turns off lighting when not in
use.
Modern Aesthetics: The Orbit HF680 boasts
a sleek design that complements any checkout counter.
Great Value: Get exceptional performance
and a stylish scanner without breaking the bank.
|
FEATURES |
|
|
Faster Scanning |
✔ |
|
Modern Styling |
✔ |
|
Simplified Scanner Integration |
✔ |
|
DIMENSIONS |
|
|
Overall Dimensions |
85 mm × 88 mm × 139 mm |
|
SCANNING SPECIFICATIONS |
|
|
Scan Pattern |
1280 × 800 pixel |
|
Pitch |
+/-60° |
|
Motion Tolerance |
2.5 m/s for 13 mil UPC |
|
Decode Capability |
1D/2D |
|
Contrast |
20% |
|
Skew |
+/-70° |
|
Scanning Range |
Standard range (SR) |
|
Maximum Brightness |
100,000 Lux |
|
HARDWARE |
|
|
Engine Type |
Standard Range |
|
Host Interface |
USB/RS232 |
|
ENVIRONMENTAL |
|
|
Storage Temperature Range |
-40°C to 60°C (-40°F to 140°F) |
|
Operating Humidity |
0% to 95% RH, no condensation |
|
OTHERS |
|
|
Form Factor |
Hands Free |
|
Weight Range |
278 +/- 10g |
|
Overall Width |
88 mm |
|
Overall Depth |
85 mm |
|
Overall Height |
139 mm |
|
Operating Current |
2.0 W (400 mA @ 5V) |
|
Standby Current |
0.85 W (170 mA @ 5V) |
|
Input Voltage |
5 VDC ±0.5V |
|
Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
|
Warranty Duration |
1 Yr |
|
Brand |
Honeywell |
|
Power Connector Type |
Corded |
Warranty: One Year Warranty
