Specification

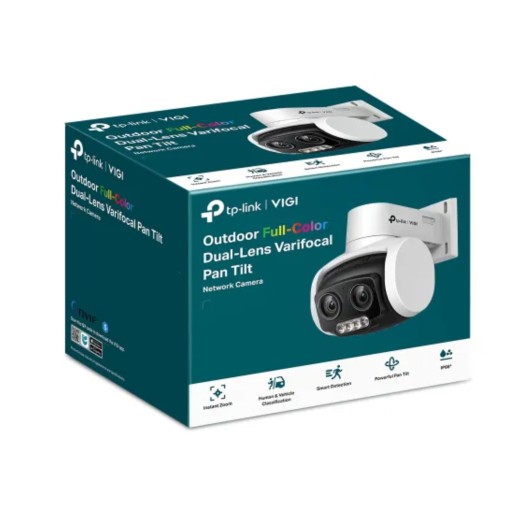

The TP-Link VIGI C540V is a 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera designed to provide comprehensive surveillance with advanced features.

Camera:

Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10,000 s

Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light

Day/Night Mechanism: IR Cut Filter

Zoom: 3× Mixed Zoom

Lens:

Focal Length: 4–12 mm (Mixed Zoom)

Aperture: F1.6

Field of View (FOV):

Diagonal: 100°

Horizontal: 84°

Vertical: 46°

Pan/Tilt/Zoom (PTZ):

Pan Range: 0° to 332°

Tilt Range: 0° to 120°

Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s

Tilt Speed: Configurable from 1° to 40°/s; Preset Speed: 40°/s

Presets: 300

Patrol Scan: 8 patrols, up to 8 presets for each patrol

Power-off Memory: Auto-restore to previous PTZ and lens status after power failure

3D Positioning: Yes

Illuminator:

IR LED: 1 (Range: 30 m; Wavelength: 850 nm)

White LED: 3 (Range: 30 m)

Video:

Max. Resolution: 2560 × 1440

Main Stream Frame Rate:

50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps

60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps

Video Compression: H.265+/H.265/H.264+/H.264

Audio:

Audio Communication: Two-Way Audio

Audio Input/Output: Yes

Audio Compression: Yes

Features:

24h Full-Color: Captures full-color details 24/7, even in pitch-black conditions, thanks to a large-aperture lens, high-sensitivity sensor, and supplemental lights.

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects for more accurate event notifications.

Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters a set area, obstructs the camera, removes/abandons objects, or enters/exits a certain region.

Active Defense: Warn potential intruders instantly with sound and light during abnormal events.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.

H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

IP66 Waterproof: Reliable IP66 rating ensures stable outdoor performance.

Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Warranty

Warranty: 1 Year

Description

The TP-Link VIGI C540V Full-Color Dual-Lens PTZ Camera has 4MP resolution, which is enough pixels to catch up on some of the more subtle details. Thanks to a large-aperture lens, a high-sensitivity sensor, and four mounted supplemental lamps, it can capture 24 hours of full-color details even in complete darkness. The zoom of the TP-Link VIGI C540V 4MP Full-Color Dual-Lens PTZ IP Camera is 3x. Allows for a closer look at objects in large areas. Zooming is instantaneous, with no lags or image dragging. Humans and cars are distinguished from other objects, resulting in more accurate event alerts. Receive alerts and monitor feeds when someone crosses a boundary, enters a predefined area, obstructs the camera, removes or abandons objects, or enters or exits a specific location. Customized patrol routes and auto-tracking offer more intelligent choices for monitoring crucial locations and improving security on your property. When unusual events occur, warn potential intruders immediately using sound and light. VIGI C540V 4MP PTZ Camera from TP-Link Carry on two-way discussions while monitoring your feed from anywhere with voice intercom capabilities. Compresses video without compromising quality, reducing network demand, and preserving disk space. Take complete control of your security with four management options: the web interface, NVR interface, VIGI app, and VIGI Security Manager. Each method has local storage as well as onboard storage with an SD card slot (up to 256GB).
