Specification

The TP-Link VIGI C540-W is a 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera designed to provide high-definition surveillance with advanced features.

Camera:

Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 seconds

Slow Shutter: Supported

Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Auto

Lens:

Type: Fixed Focal Lens

Focal Length: 4 mm

Aperture: F1.6

Field of View (FOV):

Horizontal: 79°

Vertical: 43°

Diagonal: 93°

Lens Mount: M12

DORI Distance:

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

Pan/Tilt/Zoom (PTZ):

Pan Range: 0° to 350°

Tilt Range: 0° to 120°

Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s

Presets: 300

Patrol Scan: 8 patrols, up to 8 presets for each patrol

Power-off Memory: Auto restore to previous PT and lens status after power failure

Park Action: Preset; Patrol Scan

3D Positioning: Supported

Illuminator:

IR LED Quantity: 2

IR Range: 30 m

Wavelength: 850 nm

White LED Quantity: 2

White Light Range: 30 m

Illuminator Control: Auto/Scheduled/Always on/Always off

Video:

Maximum Resolution: 2560 x 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Video Compression: H.265+/H.265/H.264+/H.264

Bit Rate Control: CBR, VBR

Video Bit Rate:

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

Image Enhancement:

Wide Dynamic Range (WDR): Digital WDR

Digital Noise Reduction: 3D DNR

Backlight Compensation (BLC): Supported

Highlight Compensation (HLC): Supported

Smart IR: Supported

Audio:

Built-in Microphone: Yes; records within a 15-ft radius

Built-in Speaker: Yes

Network:

Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port

Wireless Standards: IEEE 802.11b/g/n

Frequency: 2.4 GHz

Antenna: 2.0 dBi gain

Storage:

On-board Storage: Built-in memory card slot, supports microSD card up to 256 GB

Smart Features:

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects

Smart Detection: Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering/Exiting Detection, Object Abandoned/Removal Detection

Automatic Tracking: Follows specified moving persons or vehicles

Active Defense: Sound and light alarms for potential intrusions

Two-Way Audio: Allows communication via built-in microphone and speaker

General:

Weatherproof Rating: IP66

Dimensions: 120 × 172 × 198 mm (excluding antennas)

Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, R-NZ

Warranty

Warranty: 1 Year

Description

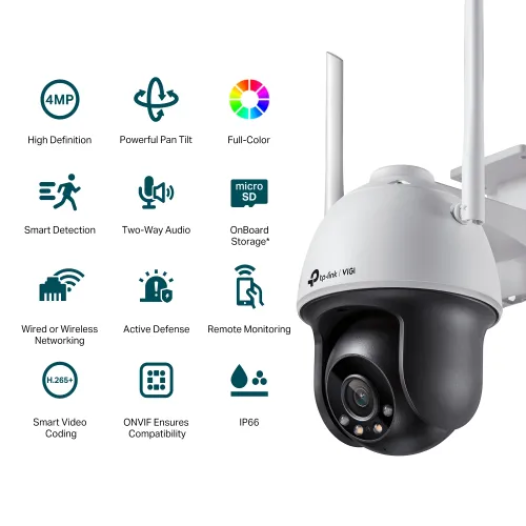

TP-Link VIGI C540-W 4MP Full-Color Wi-Fi IP PTZ Camera

The TP-Link VIGI C540-W 4MP Full-Color IP PTZ Camera monitors 24-hour vivid and colorful details, even at night. The VIGI Full-Color camera boasts a wide aperture lens, a high-sensitivity sensor, and additional lights added to assure colorful surveillance while offering up to 4MP pictures. With the TP-Link VIGI C540-W 4MP PTZ Camera Pan Tilt Camera, you can flexibly cover every corner. Personalized patrol routes and automatic tracking offer more sophisticated ways to keep an eye on important locations and bolster property security. Advanced algorithms are supported by integrated AI chips, which can differentiate between objects and humans or cars. To better meet your monitoring requirements, you may easily alter alarm rules and get more precise event notifications. continues to track specific moving people or cars, while Pan Tilt cameras make clever image analyses. When there should be little movement in the region, efficiently follow the path. With the help of AI algorithms, the VIGI camera provides more intelligent detection. Notifications will be sent to you whenever someone removes or abandons objects, obstructs the camera, enters an area you've designated, or crosses a boundary. The TP-Link VIGI C540-W 4MP PTZ Camera uses smart detection and two-way audio to automatically respond to actions and notify you right away. With the help of expert technologies like Smart IR, WDR, 3D DNR, and Night Vision, VIGI can process videos to significantly increase their quality, a crucial aspect of your monitoring. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. After you connect an RJ45 connection to your camera, you can disconnect the power supply and start transmitting data. Stable performance is protected in outdoor conditions by waterproof hardware. Utilize the online user interface, NVR user interface, VIGI app, and VIGI Security Manager to fully manage your security. Each method offers both local and onboard storage with an SD card slot (up to 256 GB).
