Specification

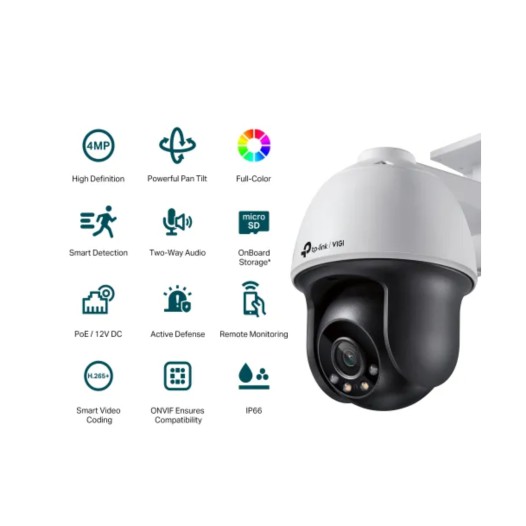

The TP-Link VIGI C540 is a 4MP outdoor full-color pan-tilt network camera designed for comprehensive surveillance with advanced features.

Camera:

Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 seconds

Slow Shutter: Supported

Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Auto

Lens:

Type: Fixed Focal Lens

Focal Length: 4 mm

Aperture: F1.6

Field of View (FOV):

Horizontal: 79°

Vertical: 43°

Diagonal: 93°

Lens Mount: M12

Pan/Tilt/Zoom (PTZ):

Pan Range: 0° to 350°

Tilt Range: 0° to 120°

Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s

Tilt Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s

Manual Control Speed: Configurable from 8° to 35°/s

Presets: 300

Patrol Scan: 8 patrols, up to 8 presets for each patrol

Power-off Memory: Auto-restore to previous PT and lens status after power failure

Park Action: Preset; Patrol Scan

3D Positioning: Supported

Illuminator:

IR LED Quantity: 2

IR Range: 30 meters

Wavelength: 850 nm

White LED Quantity: 2

White Light Range: 30 meters

Illuminator Control: Auto/Scheduled/Always on/Always off

Video:

Maximum Resolution: 2560 x 1440

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Main Stream Resolutions: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream Resolutions: 640x480, 352x288, 320x240

Bit Rate Control: CBR, VBR

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Video Bit Rate:

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

Image:

Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)

Enhancements: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range (WDR): Digital WDR (DWDR)

Signal-to-Noise Ratio (SNR): ≥ 52 dB

Privacy Mask: Up to 4 Masks

Region of Interest (ROI): 1 Region

On-Screen Display (OSD): Supported

Audio:

Audio Communication: Two-Way Audio

Audio Input: Yes

Audio Output: Yes

Audio Compression: Yes

Audio Sampling Rate: 8 KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps (G.711 alaw)

Network:

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Warranty

Warranty: 1 Year

Description

The TP-Link VIGI C540 4MP Full-Color IP PTZ Camera monitors 24-hour vivid and colorful details, even at night. The VIGI Full-Color camera boasts a wide aperture lens, a high-sensitivity sensor, and additional lights added to assure colorful surveillance while offering up to 4MP pictures. With the TP-Link VIGI C540 4MP PTZ Camera Pan Tilt Camera, you can flexibly cover every corner. Personalized patrol routes and automatic tracking offer more sophisticated ways to keep an eye on important locations and bolster property security. Advanced algorithms are supported by integrated AI chips, which can differentiate between objects and humans or cars. To better meet your monitoring requirements, you may easily alter alarm rules and get more precise event notifications. continues to track specific moving people or cars, while Pan Tilt cameras make clever image analyses. When there should be little movement in the region, efficiently follow the path. With the help of AI algorithms, the VIGI camera provides more intelligent detection. Notifications will be sent to you whenever someone removes or abandons objects, obstructs the camera, enters an area you've designated, or crosses a boundary. The TP-Link VIGI C540 4MP PTZ Camera uses smart detection and two-way audio to automatically respond to actions and notify you right away. With the help of expert technologies like Smart IR, WDR, 3D DNR, and Night Vision, VIGI can process videos to significantly increase their quality, a crucial aspect of your monitoring. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. After you connect an RJ45 connection to your camera, you can disconnect the power supply and start transmitting data. Stable performance is protected in outdoor conditions by waterproof hardware. Utilize the online user interface, NVR user interface, VIGI app, and VIGI Security Manager to fully manage your security. Each method offers both local and onboard storage with an SD card slot (up to 256 GB).
