Key
Features
Model:
VIGI C230I
Sensor: 1/2.8” Progressive Scan CMOS
Resolution:
Max. 3MP (2304 × 1296) at 25/30 fps.
Lens:
2.8mm, Aperture: F1.6, IR Distance: 30 meters
Features:
PoE, IK08, Two-Way Audio, DWDR, Smart Detection
Specification
The

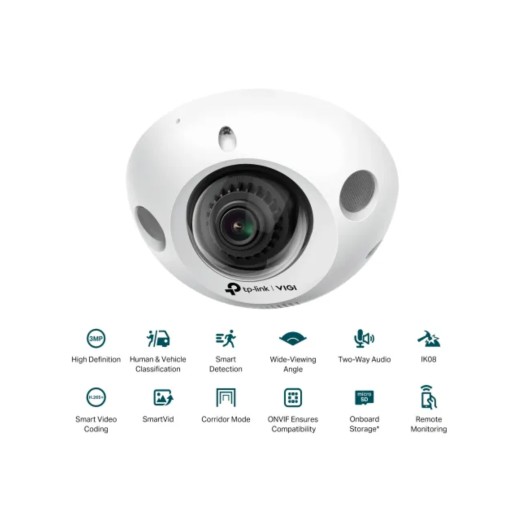

TP-Link VIGI C230I Mini is a compact 3MP IR Mini Dome Network Camera designed
for versatile surveillance applications.
Camera:
Sensor: 1/2.8” Progressive Scan CMOS
Shutter
Speed: 1/3 to 1/10000 seconds
Slow
Shutter: Yes
Aperture:
F1.6
Lens:
2.8 mm fixed focal length
Lens
Mount: M12
Minimum
Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night
Mechanism: IR Cut Filter
Day/Night
Switch: Unified/Scheduled/Auto
Digital
Noise Reduction: 3D DNR
Wide
Dynamic Range (WDR): DWDR
IR
Working Distance: Up to 30 meters
Viewing
Angle: Horizontal: 106.9°, Vertical: 56.9°, Diagonal: 127.9°
Lens:
Type:
Fixed Focal Lens
Focal
Length: 2.8 mm
Aperture:
F1.6
Field
of View (FOV): Horizontal: 106.9°, Vertical: 56.9°, Diagonal: 127.9°
Lens
Mount: M12
DORI
Distance (2.8 mm lens):
Detect:
49 m (161 ft)
Observe:
20 m (67 ft)
Recognize:
10 m (32 ft)
Identify:
5 m (16 ft)
Angle
Adjustment (Manual):
Pan:
-30° to 30°
Tilt:
0° to 85°
Rotate:
-15° to 15°
Illuminator:
IR
LED Quantity: 2
Range:
30 meters
Wavelength:
850 nm
Illuminator
On/Off Control: Auto/Scheduled/Always on/Always off
Video:
Max.
Resolution: 2304 × 1296
Main
Stream Frame Rate:
50Hz:
1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:
1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Supported
Resolutions: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream
Frame Rate:
50Hz:
1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:
1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Supported
Resolutions: 704x576, 640x480, 352x288, 320x240
Bit
Rate Control: CBR, VBR
Video
Compression:
Main
Stream: H.265+/H.265/H.264+/H.264
Sub-Stream:
H.265/H.264
Video
Bit Rate:
Main
Stream: 256 Kbps to 4 Mbps
Sub-Stream:
64 Kbps to 512 Kbps
Image:
Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, HLC (adjustable via client software), Rotation (90°/270°)
Enhancement: BLC, 3D DNR, HLC, SmartIR
Wide
Dynamic Range (WDR): DWDR
Signal-to-Noise
Ratio (SNR): ≥ 52 dB
Parameters Switch: Yes
Privacy
Mask: Up to 4 masks
Region
of Interest (ROI): 1 region
On-Screen
Display (OSD) Setting: Yes
Audio:
Audio
Communication: Two-Way Audio
Audio
Input: Yes
Audio
Output: Yes
Audio
Compression: Yes
Audio
Sampling Rate: 8 KHz
Environment
Noise Filtering: Yes
Network:
Protocols:
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS
General
Functions: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP
Listening
API:
ONVIF
Warranty
Warranty:
1 Year
Description
The
TP-Link VIGI C230I Mini Audio IP Camera has a 3MP resolution, which is more
than enough pixels to capture some of the finer details. allows for the more
precise separation of cars and people so that you can receive event
notifications. When someone enters an area you've designated, crosses a border,
blocks the camera, or takes away or abandons an object, you may monitor the
feeds and receive notifications. The VIGI C230I Mini camera's small, compact
form factor and 2.8 mm ultra-wide angle lens make it perfect for spaces with
limited room and a wide view, like hallways, elevators, small warehouses, and
convenience stores. The VIGI dome camera is equipped with a vandal-proof dome
encasing, which makes it resistant to harm and offers more dependable security
protection in key areas including checkout counters, hallways, and ATMs. Your
cameras send compressed, clear video without requiring additional bandwidth,
which frees up storage space, lightens network traffic, and lowers monitoring
expenses without compromising image quality. With the help of expert
technologies like Smart IR, WDR, 3D DNR, and Night Vision, the TP-Link VIGI IP
Camera can process videos to significantly increase their quality, a crucial
aspect of your monitoring. You may monitor long and narrow regions by switching
the visual aspect ratio from 16:9 to 9:16 using the Corridor Mode.
