Specification

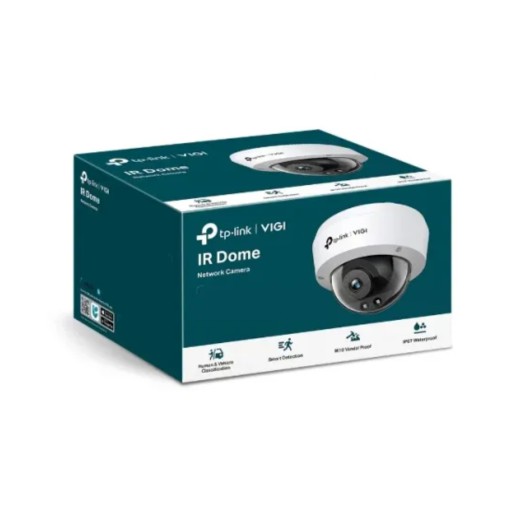

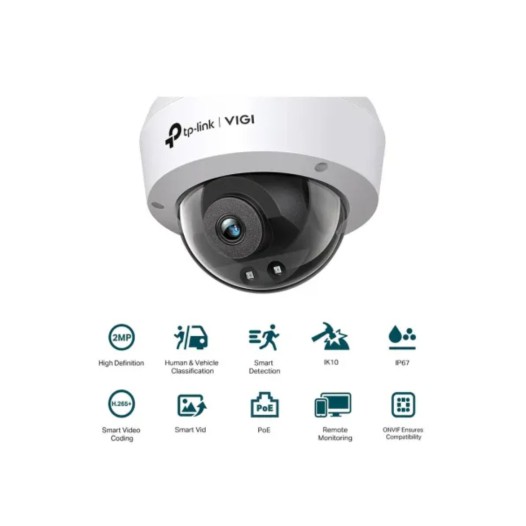

The TP-Link VIGI C220I is a 2MP IR Dome Network Camera designed for robust and high-definition surveillance.

Camera:

Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 seconds

Slow Shutter: Supported

Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/Scheduled/Auto

Lens:

Type: Fixed Focal Lens

Focal Length Options: 2.8 mm or 4 mm

Aperture:

2.8 mm: F2.2

4 mm: F2.0

Field of View (FOV):

2.8 mm: Horizontal: 88.2°, Vertical: 48.7°, Diagonal: 106.5°

4 mm: Horizontal: 74.6°, Vertical: 41.3°, Diagonal: 88.1°

Lens Mount: M12

Illuminator:

IR LED Quantity: 2

Range: Up to 30 meters

Wavelength: 850 nm

Illuminator Control: Auto/Scheduled/Always on/Always off

Video:

Maximum Resolution: 1920 × 1080

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Supported Resolutions: 1920x1080, 1280x960, 1280x720

Video Compression: H.265+/H.265/H.264+/H.264

Bit Rate Control: CBR, VBR

Video Bit Rate:

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

Image Enhancement:

Digital Noise Reduction: 3D DNR

Wide Dynamic Range: DWDR

Smart IR: Adjusts infrared lighting to prevent overexposure

Network:

Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS

ONVIF: Supported

Simultaneous Live View: 3 Main Streams and 3 Sub-Streams

Client Support: VIGI App, VIGI Security Manager, VIGI NVR

Security Features: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

General:

Operating Temperature: -30°C to 60°C

Storage Temperature: -40°C to 60°C

Operating Humidity: Up to 95% (Non-Condensing)

Storage Humidity: Up to 95% (Non-Condensing)

Dimensions: 115 × 115 × 86 mm

Material: Plastic

Weight: Net: 0.26 kg; Gross: 0.43 kg

Power Supply: PoE (802.3af/at, class 0)

Power Consumption: PoE: Class 0

Vandal Resistance: IK10

Weatherproof Rating: IP67

Additional Features:

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects for accurate event notifications.

Smart Detection: Notifies when someone crosses a boundary, enters a set area, obstructs the camera, or removes/abandons objects.

H.265+ Compression Technology: Transmits compressed crystal-clear video without using extra bandwidth, saving disk space and reducing monitoring costs.

Built-In Microphone: Captures audio to complement video footage.

Warranty

Warranty: 1 Year

Description

The TP-Link VIGI C220I Dome IP Camera has a 2 MP resolution, which is more than enough to capture some finer details. allows for the more precise separation of cars and people so that you can receive event notifications. When someone enters an area you've designated, crosses a border, blocks the camera, or takes away or abandons an object, you may monitor the feeds and receive notifications. This VIGI dome camera is constructed robustly to survive vandalism and hard settings with rain and dust for constant security anywhere and anytime. It has a durable casing that is resistant to vandalism and a waterproof design. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. With the help of expert technologies like Smart IR, WDR, 3D DNR, and Night Vision, VIGI can process videos to significantly increase their quality—a crucial aspect of your monitoring. One RJ45 cable can carry data and power to your PoE camera, making it easy to connect and power it. An adapter for electricity is not required. The C220I has two distinct lens types to better meet your security needs: a wide-angle lens for covering confined locations and a higher millimeter lens for greater distances in open spaces. Take complete charge of your security with these three administration techniques: VIGI Security Manager, the VIGI app, and the NVR UI.
