Specification

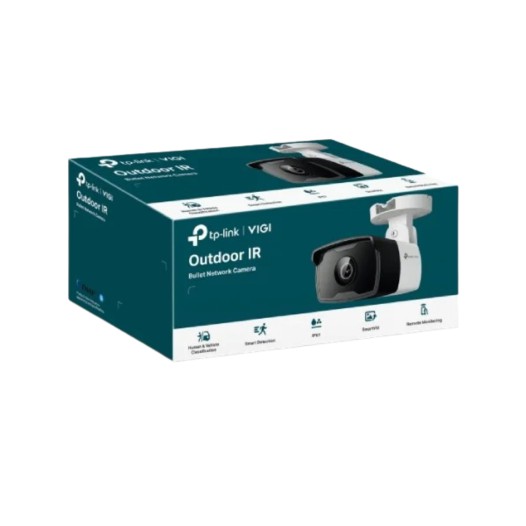

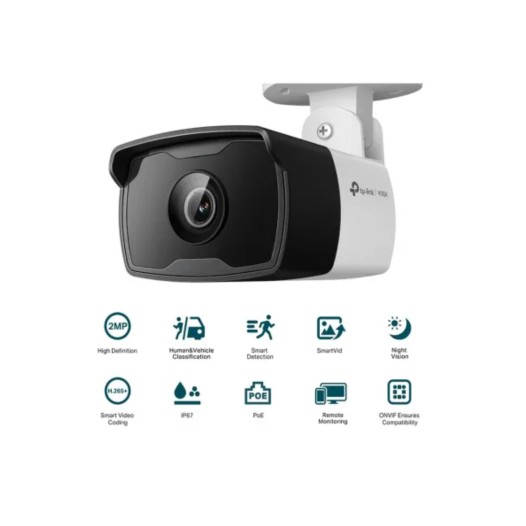

The TP-Link VIGI C320I is a 2MP Outdoor IR Bullet Network Camera designed for professional surveillance.

Camera:

Image Sensor: 1/3” Progressive Scan CMOS

Shutter Speed: 1/3 to 1/10000 seconds

Slow Shutter: Supported

Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Day/Night/Auto/Schedule-Switch

Digital Noise Reduction: 3D DNR

Wide Dynamic Range (WDR): Digital WDR (DWDR)

Weatherproof Rating: IP67

IR Working Distance: Up to 30 meters

Lens:

Type: Fixed Focal Lens

Focal Length: 2.8 mm

Aperture: F2.2

Field of View (FOV):

Horizontal: 88.2°

Vertical: 48.6°

Diagonal: 106.5°

Lens Mount: M12

DORI Distance:

Detect: 45 m (149 ft)

Observe: 19 m (62 ft)

Recognize: 9 m (30 ft)

Identify: 5 m (15 ft)

Illuminator:

IR LED Quantity: 2

Range: 30 meters

Wavelength: 850 nm

Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

Max. Resolution: 1920 × 1080

Main Stream Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Supported Resolutions: 1920x1080, 1280x960, 1280x720

Bit Rate Control: CBR, VBR

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264

Sub-Stream: H.265/H.264

Video Bit Rate:

Main Stream: 256 Kbps to 4 Mbps

Sub-Stream: 64 Kbps to 512 Kbps

Additional Features:

Human & Vehicle Classification: Distinguishes humans and vehicles from other objects for more accurate event notifications.

Smart Detection: Includes features like motion detection and tamper detection.

Smart Video Enhancement Technology:

DWDR: Enhances video quality by improving dynamic range and detail presentation.

Smart IR: Dynamically adjusts infrared lighting to prevent overexposure and glare.

3D DNR: Reduces noise while preserving important details.

White Balance: Ensures neutral whites in an image, regardless of lighting conditions.

Built-In Microphone: Captures audio to complement video recordings.

Power over Ethernet (PoE): Simplifies installation by allowing data and power transmission through a single cable.

Warranty: 1 Year

Description

The TP-Link VIGI C320I Bullet Network IP Camera has 2MP pixels, which are more than enough to capture some of the finer details. allows for the more precise separation of cars and people so that you can receive event notifications. When someone enters an area you've designated, crosses a border, blocks the camera, or takes away or abandons an object, you may monitor the feeds and receive notifications. With the help of expert technologies like Smart IR, WDR, 3D DNR, and Night Vision, VIGI can process videos to significantly increase their quality, a crucial aspect of your monitoring. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. The TP-Link VIGI C320I Network Camera performs steadily outside thanks to its dependable IP67. One RJ45 cable can carry data and power to your PoE camera, making it easy to connect and power it. An adapter for electricity is not required. The C320I has three distinct lens types to better meet your security needs, whether you need a wide-angle lens to cover confined locations or a greater millimeter lens for longer distances in open spaces. Using the NVR UI, VIGI app, and VIGI Security Manager, you can fully manage your security. Advanced algorithms are supported by integrated AI chips, which can differentiate between objects and humans or cars. To better meet your monitoring requirements, you may easily alter alarm rules and get more precise event notifications. With the help of AI algorithms, the VIGI camera provides more intelligent detection. Notifications will be sent to you whenever someone removes or abandons objects, obstructs the camera, enters an area you've designated, or crosses a boundary. Your cameras send compressed, clear video without requiring additional bandwidth, which frees up storage space, lightens network traffic, and lowers monitoring expenses without compromising image quality. The C320I has three different lens variants to better meet your security needs, whether you need a wide-angle lens to cover enclosed locations like elevators or a higher-millimeter lens for longer distances in open spaces like parking lots. The TP-Link VIGI professional surveillance system is committed to safeguarding the company you've worked so hard to establish, wherever it may be. The exceptional features, dependable quality assurances, and easy installation of TP-Link combine to guarantee the safety and stability of your company.
