Function

Cooling

BTU/hr

24000

Rated Voltage

230V ~ 50Hz

Rated Input Power (W)

2085

Rated Current (A)

9.15

Cooling Capacity (W)

7034

EER

3.37

Compressor Type

Rotary (Inverter)

Refrigerant Type

R-32

Refrigerant Amount (kg)

0.69

Operating Range (Ambient Temperature)

20˚C to 52˚C

Evaporator Fin Type

Louvered Fin

Condenser Type

Copper Tube Condenser

Condenser Fin Type

Louvered

Maximum Pipe Length

15m

Turbo Mode (Maximum Cooling)

Yes

ECO Mode (Power Saving)

Yes

Dry Mode

Yes

Fan Mood

Yes

Auto Operation

Yes

Auto Restart

Yes

Comfort Cooling

Yes

Speed Setting

Yes (Auto, High, Medium, Low)

Timer

Yes

Sleep

Yes

Auto UP-Down Swing

Yes

Auto Left-Right Swing

Yes

Display Type

LCD

Operation/Control

Via IR (Infrared Ray)

Child Lock

Yes

Temperature Unit Change

Yes (16​°C to 31°C)

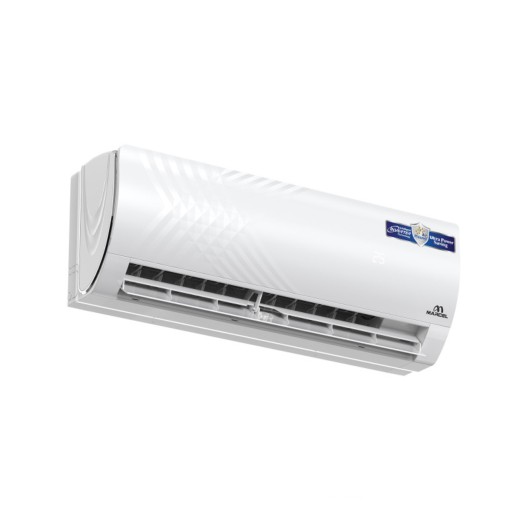

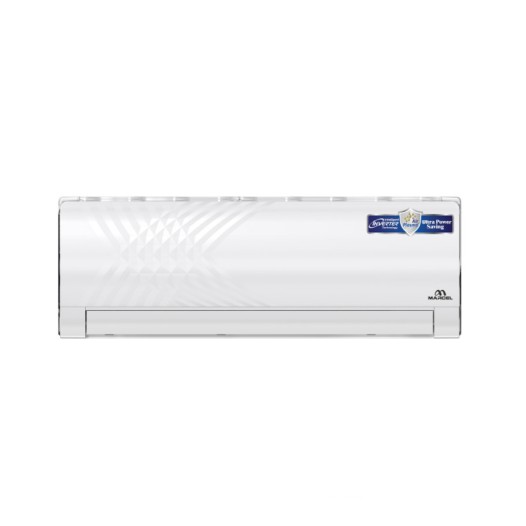

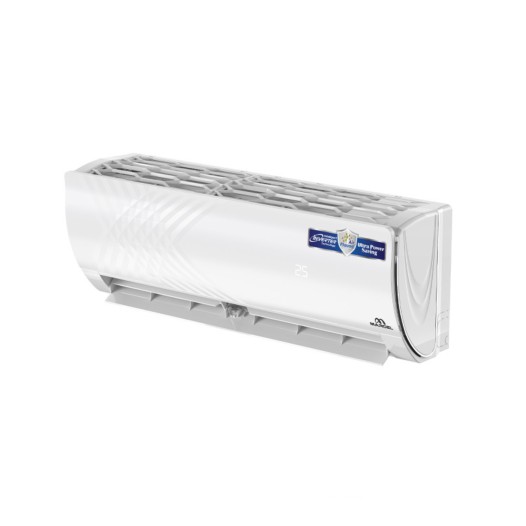

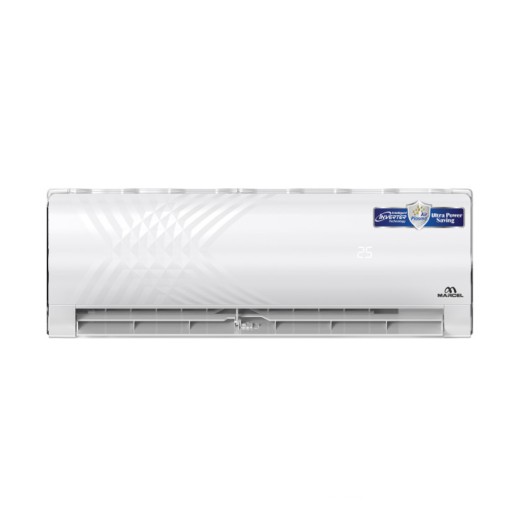

Indoor Dimensions (mm) [L×W×H]

Unit: 1094 x 329 x 242

Packing: 1180 x 410 x 315

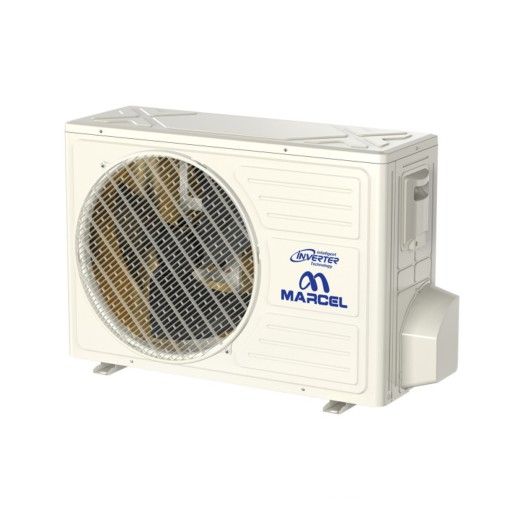

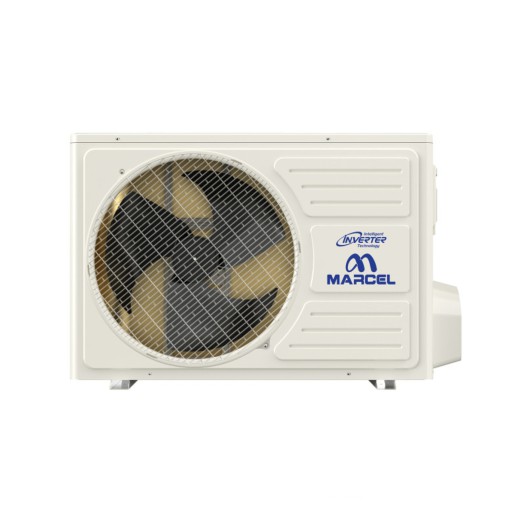

Outdoor Dimensions (mm) [L×W×H]

Unit: 942 x 371 x 701

Packing: 1015 x 440 x 775

Net Weight (Indoor) (Kg)

16 ± 0.5

Gross Weight (Indoor) (Kg)

19 ± 0.5

Net Weight (Outdoor) (Kg)

35 ± 1

Gross Weight (Outdoor) (Kg)

40 ± 1

Guarantee/Warranty Information

Product Replacement Guarantee: 1 Year

(Note: if there are manufacturing faults in the heat exchanger & compressor)

For Residential Usage

Compressor Guarantee: 10 Years

Spare Parts Support: 3 Years

After Sales Service: 1 Year (Free)

For Commercial Usage

Compressor Guarantee: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)

Terms & Conditions

1. This warranty does not cover the following cases -

      i) The warranty will be invalid if the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced modified by unauthorized service personnel.

      ii) If the product serial number/barcode is removed, altered, or duplicated, the warranty will be invalid.

2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.

3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
