Cooling
Features : |
|||
|
Type |
Direct
Cool |
||
|
Capacity
: |
|||
|
Gross
Volume |
358 Ltr. |
||
|
Net Volume |
345 Ltr. |
||
|
Net Weight |
76.5 ± 2
Kg |
||
|
Gross
Weight |
84 ± 2 Kg |
||
|
Performance
: |
|||
|
Climate
Type (SN, N, ST, T) |
N ~ ST |
||
|
Rated
Voltage/ Hz/ watt |
220~240/
50 |
||
|
Compressor
Input Power (Watt) |
V 0102-
130 |
||
|
Compressor
Type |
V 0102-
RSIR |
||
|
Cooling
Efect |
Freezer
Cabinet Less than -18 ̊C |
||
|
General
Features : |
|||
|
Temperature
Control (Electronic/ Mechanical) |
Mechanical |
||
|
Defrosting
(Automatic/ Manual) |
Manual |
||
|
Reversible
Door |
No |
||
|
Handle
(Recessed/ Grip): |
Recessed |
||
|
Lock |
Yes |
||
|
Refrigerant |
V 0102-
R600a |
||
|
Thermostat |
RoHS
Certified |
||
|
Capillary |
V 0102-
Copper |
||
|
Polyurethane
foam blowing agent |
Cyclopentene
[Eco-friendly (100% CFC & |
||
|
Recommended
voltage stabilizer capacity |
No Need To
use Voltage stabilizer. |
||
|

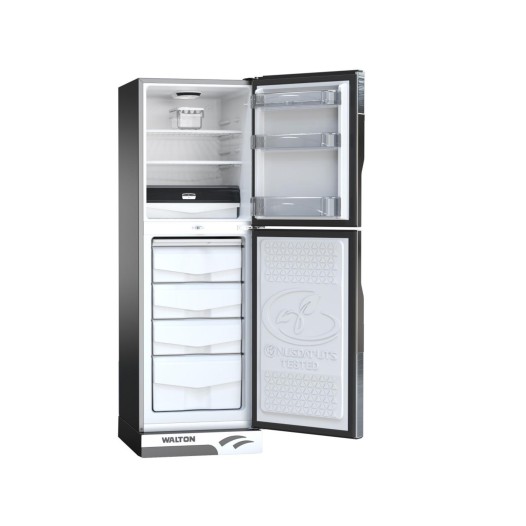

Refrigerator
Compartment : |
|||
|
Shelf
(Material/ No.) |
Wire/2 |
||
|
Door
Basket |
Yes/3 |
||
|
Interior
Lamp |
Yes |
||
|
Vegetable
Crisper |
Yes/1 |
||
|
Vegetable
Crisper Cover |
Yes |
||
|
Egg Tray
or Pocket |
Yes |
||
|
Can
Storage Dispenser |
No |
||
|
Deodorizer |
No |
||
|
Freezer
Compartment : |
|||
|
Shelf
(Material/ No.) |
Rack
Evaporator |
||
|
Drawer |
Yes/4 |
||
|
Ice Tray |
Yes/1 |
||
|
Ice Case |
Yes/2 |
||
|
Ice
Remover spoon |
Yes/1 |
||
|
Door
Basket |
No |
||
|
Interior
Lamp |
No |
||
|
Net
Dimensions : |
|||
|
Width/mm |
594 |
||
|
Depth/mm |
708 |
||
|
Height/mm |
1820 |
||
|
Packaging
Dimensions : |
|||
|
Width/mm |
635 |
||
|
Depth/mm |
740 |
||
|
Height/mm |
1890 |
||
|
Loading
Capacity- 40HQ/ 40Ft/ 20Ft |
76/ 57/ 27 |
||
Warranty
Information:
Residential Use:
- Replacement Guarantee: 1 Year (Condition Apply)
- Main Parts (Compressor): 12 Years
- Door: 3
Years *
- Spare Parts: 4 Years *
- After Sales Service:5 Years *
Commercial Use:
- Main Parts (Compressor): 4 Years
- Door: 1
Years *
- Spare Parts: 2 Years *
- After Sales Service: 2 Years *
Note:
This
warranty does not cover the following cases:
1. Any
damage due to accident, electrical fault, natural causes, negligence or
improper installation.
2. Any damage or failure caused by unauthorized modification or alteration.
3. Products with original serial numbers that have been removed, distorted or
cannot be readily recognized.
Authority keeps the right to change, extend, correct, stop or cancel the
warranty period without any prior notice.
*This warranty covers only manufacturing defects in products & workmanship,
subject to verification by company personnel.
