Type

Direct Cool

Capacity:

Gross Volume

218 Liter.

Net Volume

190 Liter.

Net Weight

57 ± 2 Kg

Gross Weight

62 ± 2 Kg

Performance:

Climatic Type (SN, N, ST, T)

N~ST

Rated Voltage/ Hz

220 ~ 240/ 50

Compressor Input Power (Watt)

V 01.01-88
V 02.01-111
V 02.02-111
V 03.01-109

Compressor Type

RSCR

Cooling Effect

Freezer Cabinet Less than -18℃
Refrigerator Cabinet 0℃ to +5℃

General Features:

Temperature Control (Electronic/ Mechanical)

Mechanical

Defrosting (Automatic/ Manual)

Manual

Reversible Door

No

Handle (Recessed/ Grip)

Recessed/ Grip

Lock

Yes

Refrigerant

R600a

Thermostat

RoHS Certified

Capillary

Copper

Polyurethane foam blowing agent

CycloPentane
[Eco-friendly (100% CFC &
HCFC Free) Green Technology]

Recommended voltage stabilizer capacity

V 01.01,V 02.01,V 02.02- 1000VA
V 03.01-Low Voltage(135~260V)
For V 03.01 - Wide Voltage Range (135Vac - 260Vac).
Voltage stabilizer is not required.
In case of voltages beyond this range, 1000VA is recommended

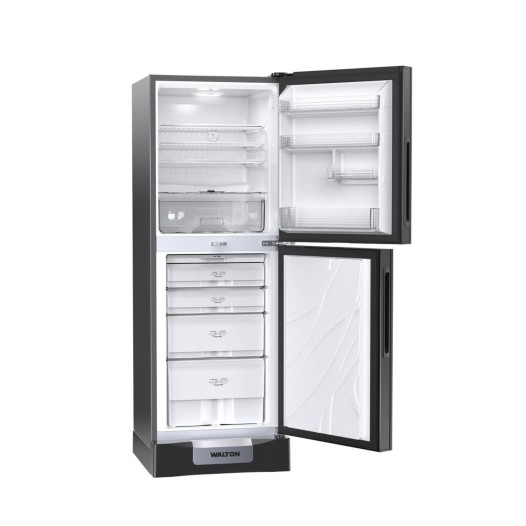

Refrigerator Compartment:

Shelf (Material/ No.)

Wire/2

Door Basket

GPPS/4

Interior Lamp

Yes

Vegetable Crisper

Yes/1

Vegetable Crisper Cover

Yes/ 1

Egg Tray or Pocket

Yes

Can Storage Dispenser

No

Freezer Compartment:

Shelf (Material/ No)

Wire/3

Drawer

HIPS/5

Door Basket

No

Interior Lamp

No

Net Dimensions:

Width/mm

555 mm

Depth/mm

630 mm

Height/mm

1580 mm

Packaging Dimensions:

Width/mm

580 mm

Depth/mm

645 mm

Height/mm

1625 mm

Loading Capacity- 40HQ/ 40Ft/ 20Ft

101/ 101/ 49
