কুলিং ফিচার্স :

Type

Direct Cool

Capacity :

Gross Volume

307 Ltr

Net Volume

301 Ltr

Performance :

Climate Type (SN, N, ST, T)

N~ST

Rated Operating Voltage and Frequency

220-240V~ and 50Hz

Compressor Input Power (Watt)

V01.01- 132
V02.01- 117
V0202-117
V0203-117
V0301-123

Compressor Type

RSCR

Cooling Effect

Freezer Cabinet Less than -18℃
Refrigerator Cabinet 0℃ to +5℃

General features

Temperature Control (Electronic/ Mechanical)

V01.01- Mechanical
V02.01- Mechanical
V0202-Mechanical
V0203-Electronic
V0301-Mechanical

Defrosting (Automatic/ Manual)

Manual

Reversible Door

No

Handle (Recessed/Grip)

Recessed/Grip

Lock

Yes

Refrigerant

V 0101- R134a
V 0201- R600a

Thermostat

RoHS Certified

Capillary

Copper

Polyurethane foam blowing agent

CycloPentene
[Eco-friendly (100% CFC &
HCFC Free) Green Technology]

Operating voltage

V 0201/0202/0203/0301: Wide Voltage Design (150V-260V)
N.B.: If out of voltage range(150V-260V), then suggested voltage stabilizer capacity is 2100VA.

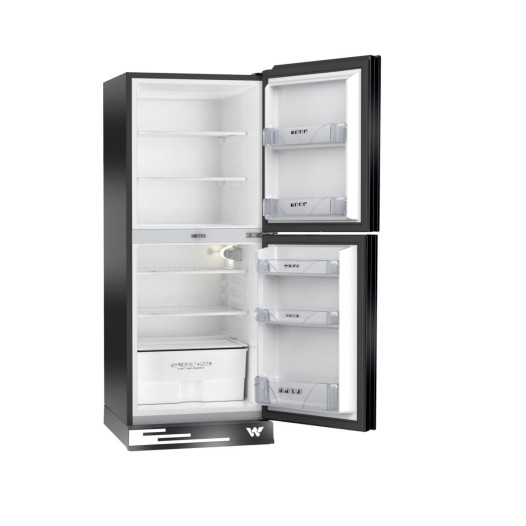

Refrigerator Compartment :

Shelf (Material/ No.)

Wire/3

Door Basket

2

Interior Lamp

Yes

Vegetable Crisper Cover

Yes (Glass/ plastic)

Egg Tray or Pocket

Yes/ 1

Can Storage Dispenser

No

Deodorizer

No

Freezer Compartment :

Shelf (Material/No.)

Wire/2

Drawer

No

Door Basket

2

Interior Lamp

No

Dimensions (Net) :

Width/mm

650

Depth/mm

650

Height/mm

1600

Packing :

Width/mm

710

Depth/mm

710

Height/mm

1660

Weight/Kg - Net/Packing

60/ 68 ± 2

Loading Capacity - 20Ft/ 40Ft/ 40 HQ

24/ 48/ 69

Star rating (BDS 1850:2012)

5
